The upgraded TITAN XL offers smooth and effortless cutting for large dia. holes upto Ø110mm x 100mm D.O.C. The completely new design TITAN XL mounted on Chrome–plated rods, sets itself apart from the competition. With MT4 arbor it can drill upto Ø47mm with twist drills. A 4-speed gearbox, 175mm stroke & even larger coolant bottle make it the clear choice for a heavy-duty Magnetic drill.

TITAN XL

SEE IT IN ACTION

TITAN XL

SPECIFICATIONS

Rated Power

1800 W, 230V, 1 Ph, 50hz

No-load speed

135/235/280/480 RPM

Weight

36 kg

Stroke

175mm

Annular Cutter

Up to Ø110mm

Twist Drill

Up to Ø47mm

Countersinking

Up to Ø63mm

Depth of cut

Up to 100mm

Magnetic Clamping

23,500N (25mm, Ra = 1,25)
TITAN XL

FEATURES

Up to 175mm Stroke

For stack plate drilling

FOUR SPEED DRILL MOTOR

For optimal torque

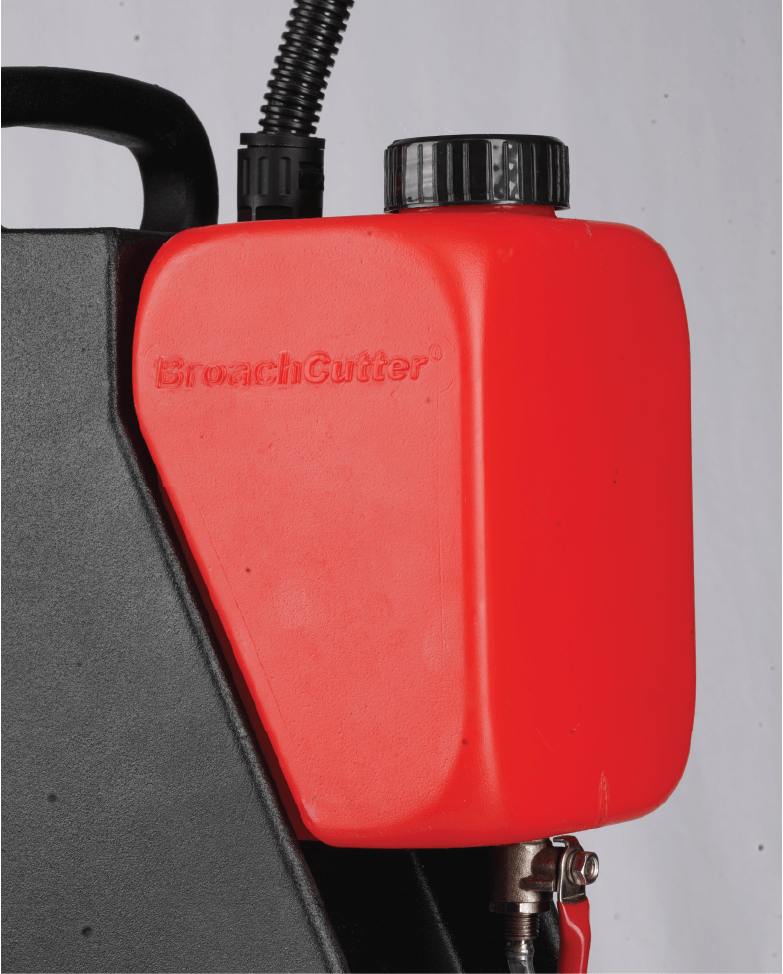

Large coolant bottle

More holes per refill
TITAN XL

SUPPLY FORMAT

TITAN XL Magnetic Drilling Machine
1 pc
6mm Allen Key
1 pc
Cooling System
1 Set
Safety Strap with Snap Hook
1 pc
Feed Handles
3 pcs
Spindle Locknut Spanner
1 pc
MT4 Arbor 19.05
1 pc
Operation Manual
1 pc
MT4 Arbor 31.75mm
1 pc
Sturdy Metal Carrying Case
1 case
MT4 Drill Drift
1 pc
